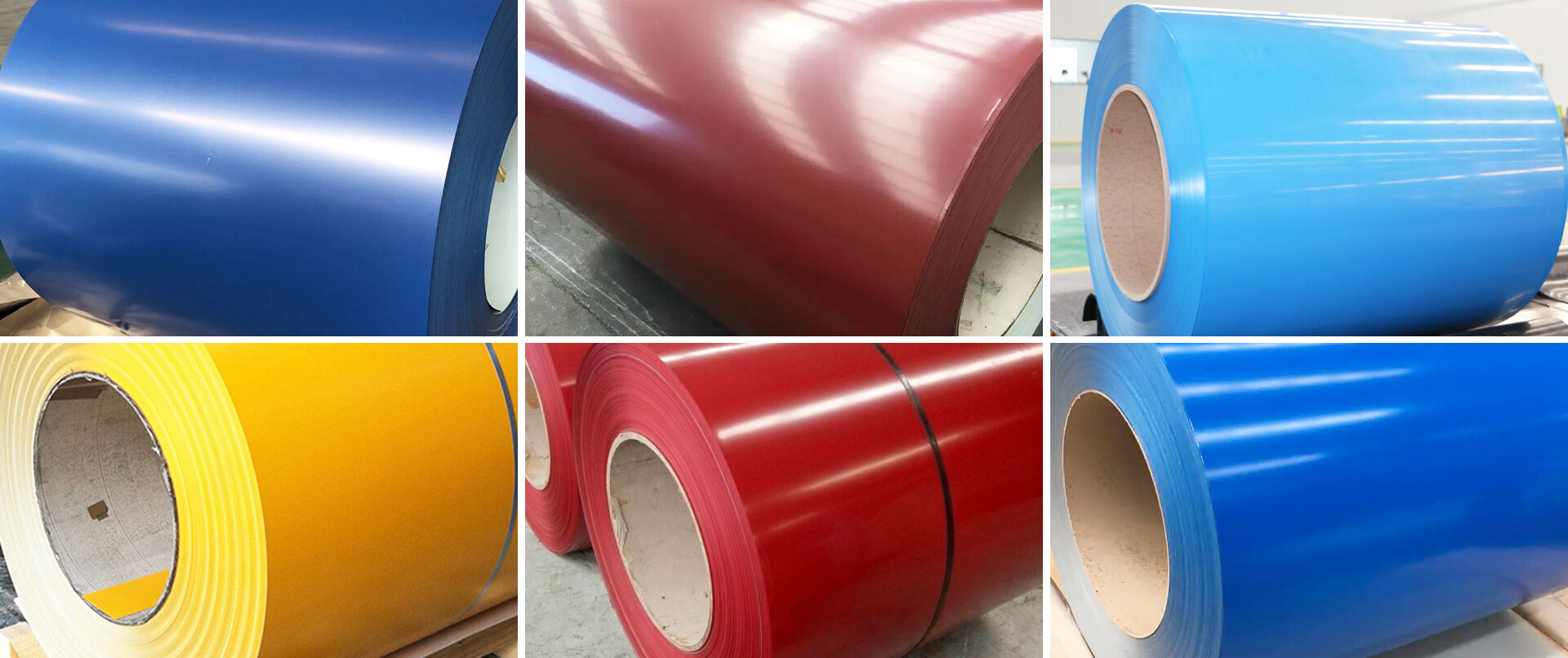

SGCC PPGI Coil
Galvanized color coated coil is made of galvanized steel plate as the substrate, which is sequentially degreased, chemically treated, and roll coated with organic coatings (such as polyester, silicon modified polyester, polyvinylidene fluoride, etc.) on its surface, and then baked and cured. Widely used in the fields of building roofs and walls (such as factories, warehouses, and residential buildings), household appliance casings (refrigerators, air conditioners), transportation (car body parts, containers), etc., it is an important industrial material that combines practicality and aesthetics.
Submit
PRODUCT DETAILS

Parameter

Product NamePPGI /PPGL
StandardEN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
GradeSGCC,SGCD,DX51D+Z, DX52D+Z, DX53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ,SECC,SECE, BLCE+Z, BLDE+Z, BUSDE+Z,or as Your Request
Thickness0.12 ~ 3.00 mm (Cold Rolled)1.20 ~ 4.60 mm (Hot Rolled )
Width10 - 600 mm (strip)600 - 1250 mm (coil) or as Your Request ( regular width 1000mm, 1250mm, 1500mm )
ToleranceThickness: ±0.01 mmWidth: ±2 mm
PackingStandard Export packing(Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)

Chemical Composition

bse metal typeGradeCHEMICAL COMPOSITION %
CSiMnP
cold rolled steel sheetDC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF≤0.10-≤0.50≤0.035
DC52D+Z (St04Z), DC52D+ZF≤0.08-≤0.45≤0.030
DC53D+Z (St05Z), DC53D+ZF≤0.08-≤0.40≤0.030
DC54D+Z (St06Z), DC54D+ZF≤0.01≤0.10≤0.30≤0.025
DC56D+Z (St07Z), DC56D+ZF≤0.01≤0.10≤0.30≤0.025
hot rolled steel sheetDD51D+Z (St01ZR, St02ZR)≤0.10-≤0.50≤0.035
DD54D+Z (St06ZR)≤0.01≤0.10≤0.30≤0.025

Mechanical Properties

UsageGradeYield Strength (MPA)Tensile Strength (MPA)Elongation rate %
Punching galvanized steelDX51D+Z~270-500>=20
DX52D+Z140-300270-420>=22
DX53D+Z140-260270-380>=26
DX54D+Z140-220270-350>=30
Structure galvanized steelS220GD+Z>=220>=300>=18
S250GD+Z>=250>=330>=17
S280GD+Z>=280>=360>=16
S320GD+Z>=320>=390>=15
S350GD+Z>=350>=420>=14
S400GD+Z>=400>=470~
S500GD+Z>=500>=530~
S550GD+Z>=550>=560~
